HY-1
  • HY-1
  • HY-1
0 1
HY-1

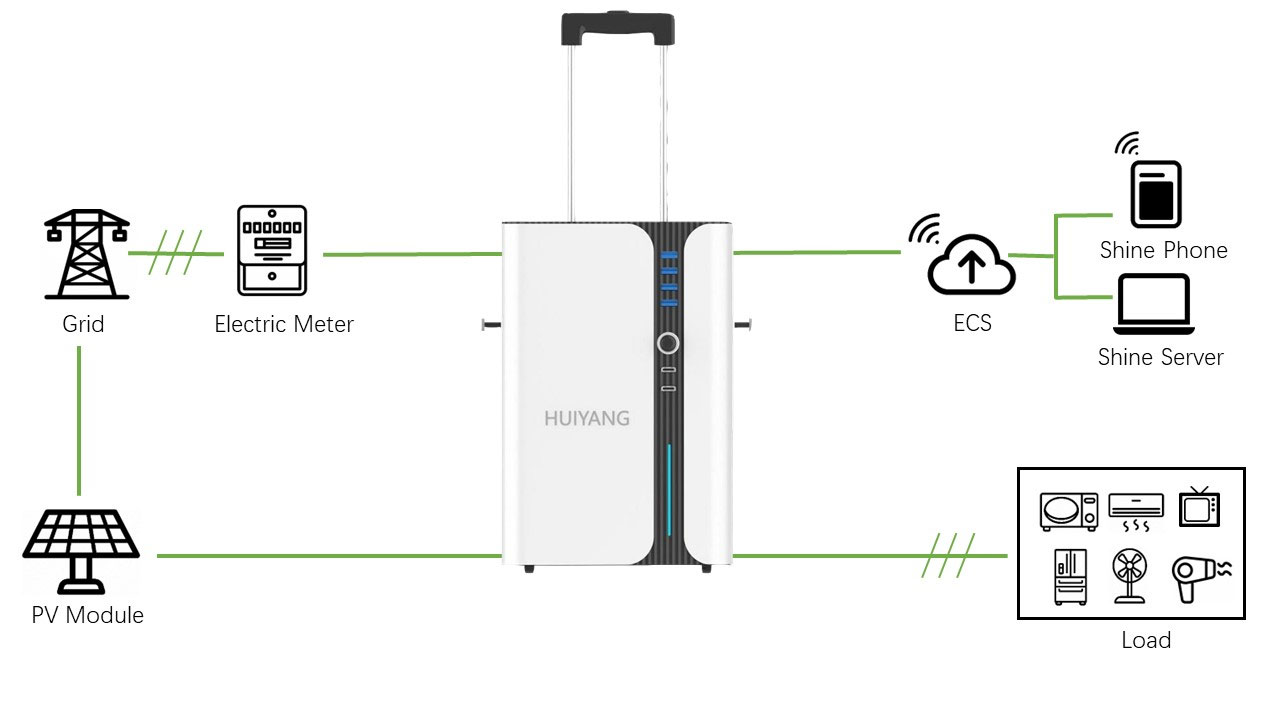

2.5KWH system can meet more power/site demands at the same time Flexible Pull rod design to meet the needs of more power scenarios Customized design and DIY for different customers Fashion Stylish and elegant appearance Space saving Security Mixed operation mode (matching load, standby power mode, peak shaving and valley filling) Multiple protection and alarm systems, safe and reliable Relevant certification can be done according to customer requirements Application scenario Household electricity Camping
  • Product Details
  • NameSpecificationsParameterQuantityRemarks
    Battery2500WHLithium iron phosphate battery pack1
    Input port12V-30V inputMaximum 150W1Maximum input power 150W
    Solar charging inputMaximum open circuit voltage 30V
    MPPT voltage：12V-30V
    Mains power input110V，11.4A；220V，5.68A，Maximum 1250W1Inverter charging
    Output portUSB-A output5V，3.6A，Maximum 18W2
    		Top 2, slow charging
    QC3.0，18W2Next 2, QC3.0 fast charging
    12V output12V，10A，Maximum 120W1
    TYPE-C outputPD 3.0  65W2
    		PD fast charging
    AC output110V edition：Single port maximum1100W1
    		Total rated power 2500W, maximum 5000W (3 seconds duration)
    220V edition：Single port maximum 2200W1
    Sizeproduct：260X200X300MMWooden box：420X280X310MM

    Shell materialTopABS plastic，PC plastic

    Side201 stainless steel plate

    handleAluminium alloy

    Net weight28kg32kg
    		Estimated weight
    Heat dissipation mode

    Cooling fan

    		4
    Gross weight33.5kgEstimated weight
    Executive standardsGB/T 36558-2018《General Technical Conditions for Electrochemical Energy Storage System of Power System》
    Battery certificationUN38.3,MSDS
    Complete machine certificationcan be done according to customer requirements
    Environmental certificationRohs,REACH

    NameSpecificationsParameterQuantityRemarks
    Battery2500WHLithium iron phosphate battery pack1
    Input port12V-30V inputMaximum 150W1Maximum input power 150W
    Solar charging inputMaximum open circuit voltage 30V
    MPPT voltage：12V-30V
    Mains power input110V，11.4A；220V，5.68A，Maximum 1250W1Inverter charging
    Output portUSB-A output5V，3.6A，Maximum 18W2
    		Top 2, slow charging
    QC3.0，18W2Next 2, QC3.0 fast charging
    12V output12V，10A，Maximum 120W1
    TYPE-C outputPD 3.0  65W2
    		PD fast charging
    AC output110V edition：Single port maximum1100W1
    		Total rated power 2500W, maximum 5000W (3 seconds duration)
    220V edition：Single port maximum 2200W1
    Sizeproduct：260X200X300MMWooden box：420X280X310MM

    Shell materialTopABS plastic，PC plastic

    Side201 stainless steel plate

    handleAluminium alloy

    Net weight28kg32kg
    		Estimated weight
    Heat dissipation mode

    Cooling fan

    		4
    Gross weight33.5kgEstimated weight
    Executive standardsGB/T 36558-2018《General Technical Conditions for Electrochemical Energy Storage System of Power System》
    Battery certificationUN38.3,MSDS
    Complete machine certificationcan be done according to customer requirements
    Environmental certificationRohs,REACH
