HY-2
  • HY-2
0
HY-2

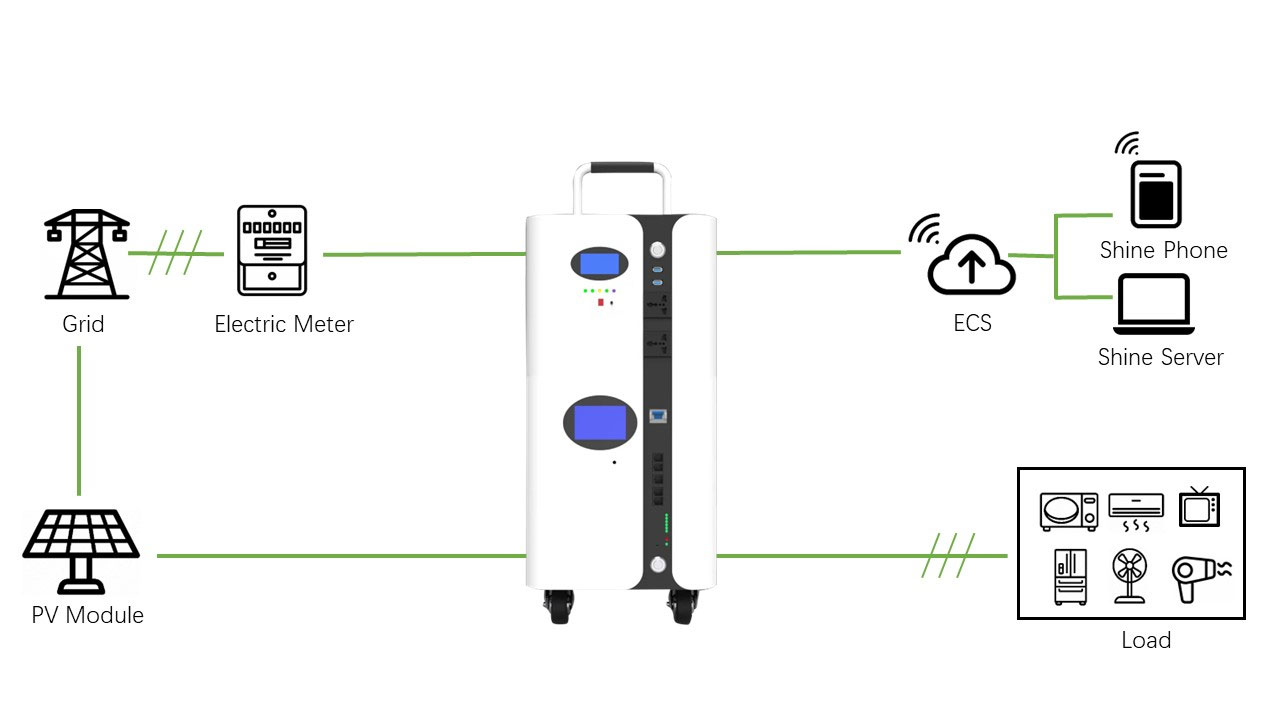

Integrated energy storage system Flexible The design of pull rod and universal wheel can meet the needs of more electricity scenarios Customized logo can be satisfied Fashion Stylish and elegant appearance Security Integrated design, with LFP lithium battery integrated internally; Mixed operation mode (matching load, standby power mode, peak shaving and valley filling); Multiple protection and alarm systems, safe and reliable; Meet FCC ,UN certification requirements; Application scenario Household electricity Family emergency Farm ranc
  • Product Details
  • ModelM-1M-2M-3
    AC parameters (grid connection mode)
    Rated power3000W4000W5000W
    Rated voltage/range230V /180Vac~280Vac；110-120/220-240V split phase
    Rated frequency

    50/60Hz

    AC parameters (battery mode)
    Output power3000W4000W5000W
    Output voltage

    230V /180Vac~280Vac；110-120/220-240V split phase

    Rated frequency50/60Hz
    Switching time between parallel and offline≤20mS
    Battery parameters
    Rated voltage/range48V/44.8~57.6V
    Battery typeLithium iron phosphate battery（LFP）
    Battery capacity5kwh*N（N≤4）
    Maximum charge/discharge rate0.7/1C
    PV parameters
    Recommended maximum photovoltaic input power3000W4000W5000W
    Open circuit voltage/MPPT voltage range60-150V
    Number of MPPT/number of strings per channel2/1
    Maximum input current40A
    System parameter
    Interface HMILCD+Wifi+LED Optional
    Installation methodWall hanging or floor against the wall
    Size/Weight613*275*511mm（reference）

    ModelM-1M-2M-3
    AC parameters (grid connection mode)
    Rated power3000W4000W5000W
    Rated voltage/range230V /180Vac~280Vac；110-120/220-240V split phase
    Rated frequency

    50/60Hz

    AC parameters (battery mode)
    Output power3000W4000W5000W
    Output voltage

    230V /180Vac~280Vac；110-120/220-240V split phase

    Rated frequency50/60Hz
    Switching time between parallel and offline≤20mS
    Battery parameters
    Rated voltage/range48V/44.8~57.6V
    Battery typeLithium iron phosphate battery（LFP）
    Battery capacity5kwh*N（N≤4）
    Maximum charge/discharge rate0.7/1C
    PV parameters
    Recommended maximum photovoltaic input power3000W4000W5000W
    Open circuit voltage/MPPT voltage range60-150V
    Number of MPPT/number of strings per channel2/1
    Maximum input current40A
    System parameter
    Interface HMILCD+Wifi+LED Optional
    Installation methodWall hanging or floor against the wall
    Size/Weight613*275*511mm（reference）
