HY-3

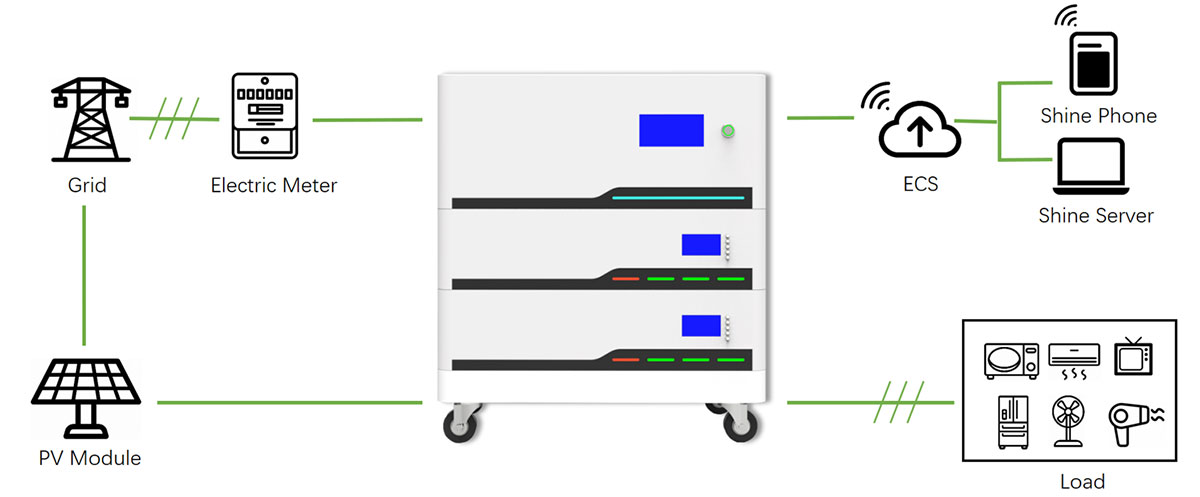

Complementary Expansion Of Power Grid Off Grid Energy Storage Flexible Two way wheel design to meet the needs of more indoor and outdoor electricity scenarios Customized logo can be satisfied Security PCS and battery system are designed separately for indoor/outdoor installation; High voltage battery system design, supporting up to 4 modules in series, with a maximum capacity of 26.4kwh; Mixed operation mode (matching load, standby power mode, peak shaving and valley filling) Multiple protection and alarm systems, safe and reliable Application scenario Self use Use electricity for backup Smart home energy management
  • Product Details

  • model

    		MH-5KMH-10KMH-20/30K
    AC parameters (grid connection mode)
    Rated power

    5000W

    		10000W20000/30000W
    Rated voltage/range230V /180Vac~280Vac；110-120/220-240V split phase 380V high-voltage syste
    Rated frequency50/60Hz
    AC parameters (battery mode)
    output power5000W10000W20000/30000W
    output voltage

    230V /180Vac~280Vac；110-120/220-240V split phas 380V high-voltage syste

    Rated frequency50/60Hz
    Switching time between parallel and offline≤20mS
    Battery parameters
    Rated voltage/range

    Low voltage system:51.2V/44~57.6V High voltage system:102.4V/89.6~115.2

    Battery typeLithium iron phosphate battery（LFP）
    Battery capacity/expansion mode5.12kwh*N；parallel connection; Series connection mode
    Maximum charge/discharge rate0.7/1C
    PV parameters
    Recommended maximum photovoltaic input power3000W5000W
    		5000W
    Open circuit voltage/MPPT voltage range60-150V125~600V
    Number of MPPT/number of strings per channel2/14/1
    Maximum input current of each circuit40A 14A
    system parameter
    HMILCD+Wifi+LED  Optional
    Installation methodto ground; Stacking
    Size/Weight485*450*140*6mm（reference）


    model

    		MH-5KMH-10KMH-20/30K
    AC parameters (grid connection mode)
    Rated power

    5000W

    		10000W20000/30000W
    Rated voltage/range230V /180Vac~280Vac；110-120/220-240V split phase 380V high-voltage syste
    Rated frequency50/60Hz
    AC parameters (battery mode)
    output power5000W10000W20000/30000W
    output voltage

    230V /180Vac~280Vac；110-120/220-240V split phas 380V high-voltage syste

    Rated frequency50/60Hz
    Switching time between parallel and offline≤20mS
    Battery parameters
    Rated voltage/range

    Low voltage system:51.2V/44~57.6V High voltage system:102.4V/89.6~115.2

    Battery typeLithium iron phosphate battery（LFP）
    Battery capacity/expansion mode5.12kwh*N；parallel connection; Series connection mode
    Maximum charge/discharge rate0.7/1C
    PV parameters
    Recommended maximum photovoltaic input power3000W5000W
    		5000W
    Open circuit voltage/MPPT voltage range60-150V125~600V
    Number of MPPT/number of strings per channel2/14/1
    Maximum input current of each circuit40A 14A
    system parameter
    HMILCD+Wifi+LED  Optional
    Installation methodto ground; Stacking
    Size/Weight485*450*140*6mm（reference）
