HY-4
  • HY-4
  • HY-4
0 1
HY-4

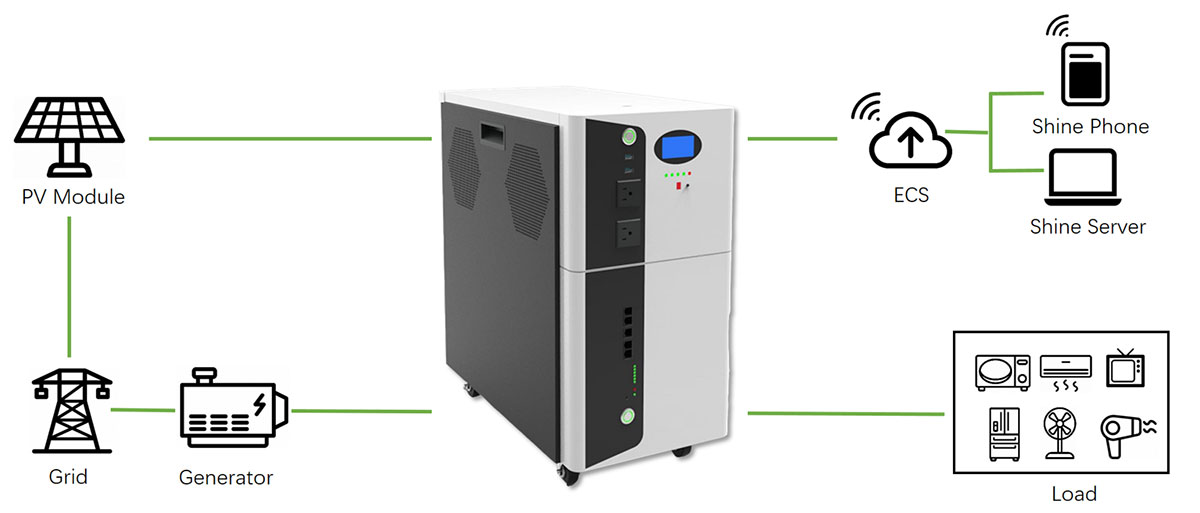

Flexible Universal wheel design to meet the needs of more electricity scenarios Customized design and DIY for different customers Fashion Stylish and elegant appearance Security Integrated design, with LFP lithium battery integrated internally; Mixed operation mode (matching load, standby power mode, peak shaving and valley filling) Multiple protection and alarm systems, safe and reliable Application scenario Self use Use electricity for backup Smart home energy management
  • Product Details
  • ModelM-E50M-P60
    AC parameters (grid connection mode)
    Rated power3000W5000W
    Rated voltage/range

    230V /180Vac~280Vac；110-120/220-240V split phas

    Rated frequency50/60Hz
    AC parameters (battery mode)
    Output power3000W5000W
    Output voltage

    230Vac；110-120/220-240V split phase

    Rated frequency50/60Hz
    Switching time between parallel and offline≤20mS
    Battery parameters
    Rated voltage/range48V/44.8~57.6V
    Battery typeLithium iron phosphate battery（LFP）
    Battery capacity/expansion mode5/10/15kwh
    Maximum charge/discharge rate0.7/1C
    PV parameters
    Recommended maximum photovoltaic input power2000W4000W
    Open circuit voltage/MPPT voltage range60-150V
    Number of MPPT/number of strings per channel1/12/1
    Maximum input current of each circuit40A
    System parameter
    Interface HMILCD+Wifi+LED
    Installation methodLanding, movable
    Size/Weight642*310*540mm（reference）


    ModelM-E50M-P60
    AC parameters (grid connection mode)
    Rated power3000W5000W
    Rated voltage/range

    230V /180Vac~280Vac；110-120/220-240V split phas

    Rated frequency50/60Hz
    AC parameters (battery mode)
    Output power3000W5000W
    Output voltage

    230Vac；110-120/220-240V split phase

    Rated frequency50/60Hz
    Switching time between parallel and offline≤20mS
    Battery parameters
    Rated voltage/range48V/44.8~57.6V
    Battery typeLithium iron phosphate battery（LFP）
    Battery capacity/expansion mode5/10/15kwh
    Maximum charge/discharge rate0.7/1C
    PV parameters
    Recommended maximum photovoltaic input power2000W4000W
    Open circuit voltage/MPPT voltage range60-150V
    Number of MPPT/number of strings per channel1/12/1
    Maximum input current of each circuit40A
    System parameter
    Interface HMILCD+Wifi+LED
    Installation methodLanding, movable
    Size/Weight642*310*540mm（reference）


Business cooperation
We are looking for partners around the world. Interested parties can contact us through the following telephone or email, and we will reply as soon as possible! Look forward to your joining!
Tel：
18088803851
18823433557
E-mail：
wuhongchen1688@163.com
minghang0908@163.com
Company Address:
Room 605, Floor 6, Building 1, Phase II Plant, No. 3, Renluo 6th Road, Shuikou Sub district Office, Huicheng District, Huizhou City, China.
