HY-5
  • HY-5
  • HY-5
0 1
HY-5

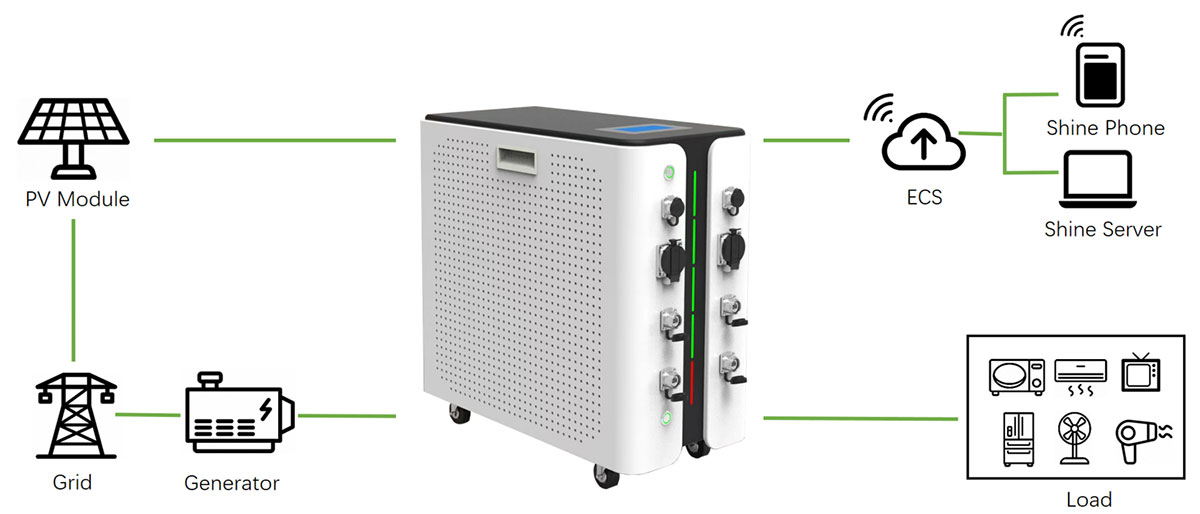

Flexible Universal wheel design to meet the needs of more electricity scenarios Customized design and DIY for different customers Fashion Stylish and elegant appearance Security Integrated design, with LFP lithium battery integrated internally; Mixed operation mode (matching load, standby power mode, peak shaving and valley filling) Multiple protection and alarm systems, safe and reliable Waterproof structure of IP65 Application scenario Self use Use electricity for backup Smart home energy management
  • Product Details
  • ModelM-E50M-P60
    AC parameters (grid connection mode)
    Rated power3000W3000W
    Rated voltage/range

    230V /180Vac~280Vac；110-120/220-240V split phase

    Rated frequency50/60Hz
    AC parameters (battery mode)
    Output power3000W3000W
    Output voltage

    230V /180Vac~280Vac；110-120/220-240V split phase

    Rated frequency50/60Hz
    Switching time between parallel and offline≤20mS
    Battery parameters
    Rated voltage/range48V/44.8~57.6V
    Battery typeLithium iron phosphate battery（LFP）
    Battery capacity/expansion mode5kwh
    Maximum charge/discharge rate0.7/1C
    PV parameters
    Recommended maximum photovoltaic input power3000W
    Open circuit voltage/MPPT voltage range60~150V
    Number of MPPT/number of strings per channel1/1
    Maximum input current of each circuit40A
    System parameter
    Interface HMILCD+Wifi+LED Optional
    Installation methodLanding, movable
    Size/Weight613*275*511mm（reference）


    ModelM-E50M-P60
    AC parameters (grid connection mode)
    Rated power3000W3000W
    Rated voltage/range

    230V /180Vac~280Vac；110-120/220-240V split phase

    Rated frequency50/60Hz
    AC parameters (battery mode)
    Output power3000W3000W
    Output voltage

    230V /180Vac~280Vac；110-120/220-240V split phase

    Rated frequency50/60Hz
    Switching time between parallel and offline≤20mS
    Battery parameters
    Rated voltage/range48V/44.8~57.6V
    Battery typeLithium iron phosphate battery（LFP）
    Battery capacity/expansion mode5kwh
    Maximum charge/discharge rate0.7/1C
    PV parameters
    Recommended maximum photovoltaic input power3000W
    Open circuit voltage/MPPT voltage range60~150V
    Number of MPPT/number of strings per channel1/1
    Maximum input current of each circuit40A
    System parameter
    Interface HMILCD+Wifi+LED Optional
    Installation methodLanding, movable
    Size/Weight613*275*511mm（reference）
